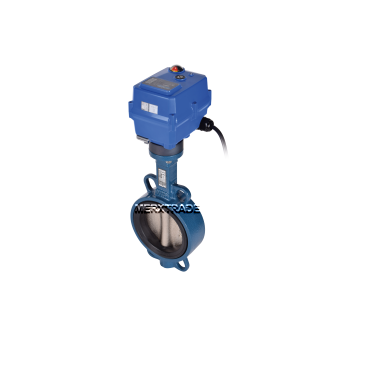

Butterfly valve wafer electric 95-265V AC/DC IP67 GG25/St.St./EPDM PN10/16
Butterfly valve wafer electric 95-265V AC/DC IP67 GG25/St.St./EPDM PN10/16
| Model: |
Wafer |
Material body: |
Cast iron GG25 |
| Connection: |
Between flanges PN10/16 ANSI 150# |
Material disc: |
St.St. ASTM A351 CF8M |
| Pressure: |
16 bar, check tech data PDF |
Material seat: |
EPDM |
| Temperature: |
-15°C-110°C |
Operation: |
Electric on/off 95-265V AC/DC |
| Electrical Actuator standard on/off execution |
| Casing + lid: |
Plastic (ABS) |
Motor protection: |
Thermal switch |
| Gear box: |
Treaded steel pinions |
Limit switches: |
2 adjustable switches |
| Anti-condensation: |
Integrated |
Auxiliary switches: |
2 adjustable dry switches |
| Supply voltage: |
95 up-to 265V AC/DC |
Manual control: |
By key |
Application: Horticulture, agriculture, greenhouse construction, boiler houses, shipbuilding, industry, heating, pump systems, engine rooms, marine,
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-1123T23000 |
| Body material |
Cast Iron-GG25-EN-GJL-250 |
| Disc / Ball / Wedge |
Stainless steel-CF8M-316 |
| Seat |
EPDM |
